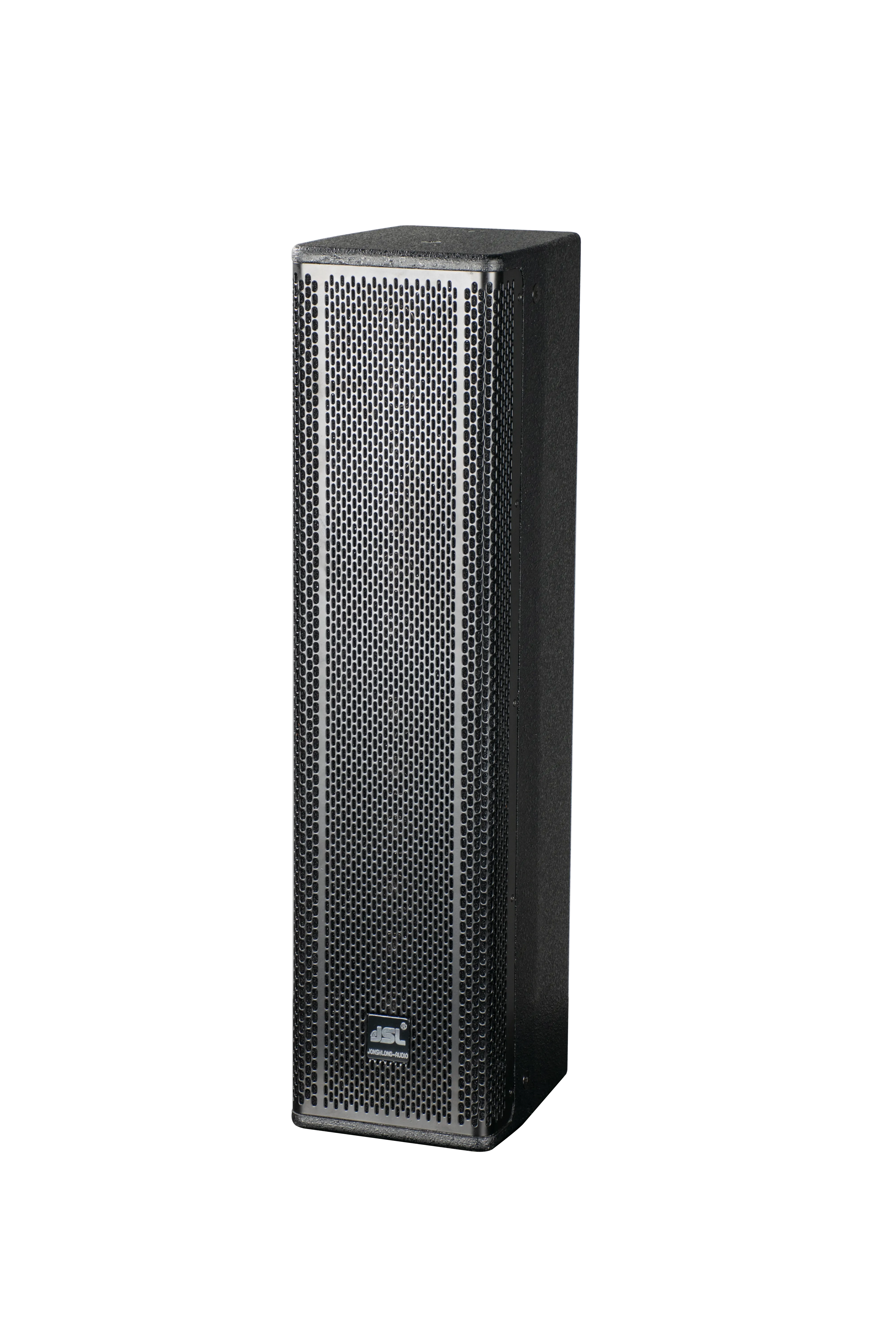

Active Steerable Coaxial Column Speaker N-101CS

The N-101CS is a professional active coaxial column speaker combined with 4x5" woofers and 12x1" titanium-dome tweeters arranged in a front-ported coaxial array. As an active coaxial steerable column speaker, it integrates 8 independent Class-D amplifier modules and advanced DSP processing for precise ±20° vertical beam control, ensuring optimal sound coverage in auditoriums, conference rooms, andother interior spaces. The system supports different kinds of installations (wall-mount, stand, or suspended) and delivers 240W total power (116dB continuous SPL) with ultra-low distortion (<5%). Key features include 30 user presets with password protection, 8-channel parametric EQ, adjustable noise gate/compressor, and flexible crossover modes (DSP-based). Its coaxial driver configuration (25mm voice coils, neodymium magnets) achieves a wide frequency response (85Hz–20kHz) while maintaining phase coherence. Built for durability, the coaxial column speaker features a birch plywood enclosure with water-based paint and a low-carbon steel grille. Compact dimensions (170×212×690mm, 9.3kg) and universal 100-240V power make it ideal for global AV installations demanding high intelligibility and steerable directivity.
